Product features:
1. This series is used for lifting cast iron ingot, steel ball, iron ore generation and machine cutting; All kinds of miscellaneous iron, return charge, cutting head of foundry; Packaging scrap steel; In the treatment process of steelmaking slag, it is used to remove large iron parts in advance. Lifting iron powder in coal washing plant. Double chamber type cable outlet box, special super thick cable outlet box protection plate, lead cable anti twist setting. MW5 series lifting electromagnet has standard, high temperature and high frequency type.
2, MW5 series standard type and high temperature type lifting electromagnet, usually using the constant voltage control mode, can also use strong excitation or over excitation control mode, the power continuity rate is generally TD60%. MW5 series high temperature electromagnet adopts special heat resistant measures, which can lift scrap steel below 700℃. MW5 series high frequency type lifting electromagnet is generally used in strong excitation or over excitation control mode, power continuity rate TD75%, can be used in strong excitation mode (DC-290V/200V) can improve the lifting capacity of about 6%, large can be used over excitation (DC350V/290V/200V), can accelerate the excitation speed of electromagnet, The lifting capacity can be increased by about 12%.
3, simple structure, convenient installation, can be easily matched with all kinds of lifting equipment.

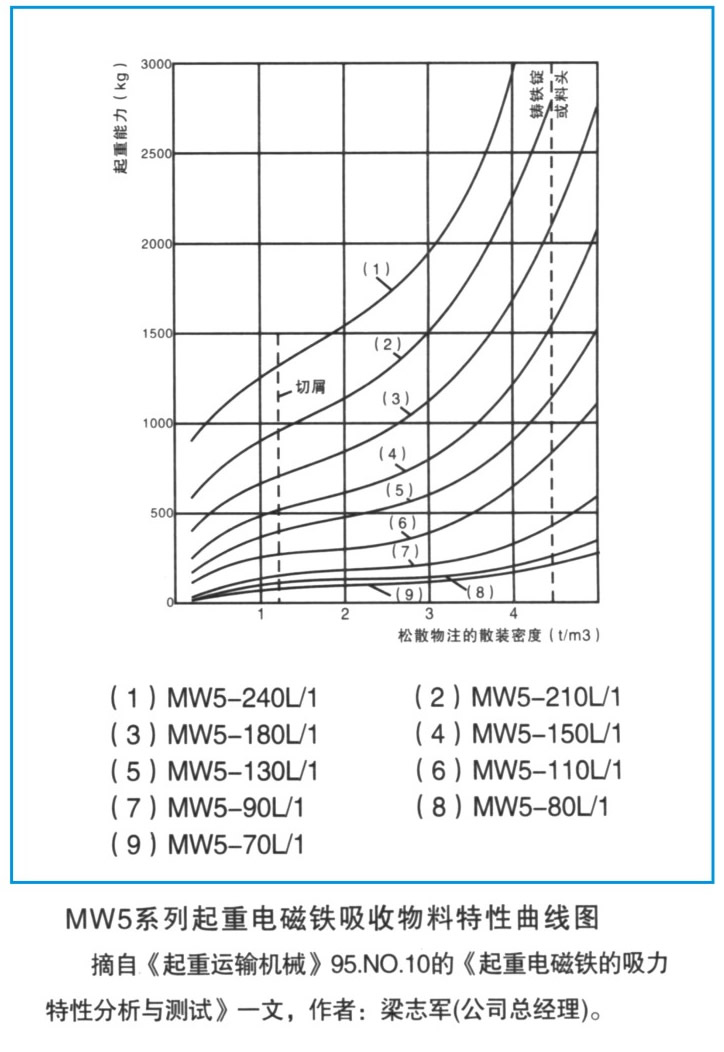

4. For magnetic materials of different densities, please select MW5 series lifting electromagnet according to the right picture "MW5 series lifting electromagnet absorbing material characteristic diagram".
